IMCC

PCB | SEMICONDUCTOR

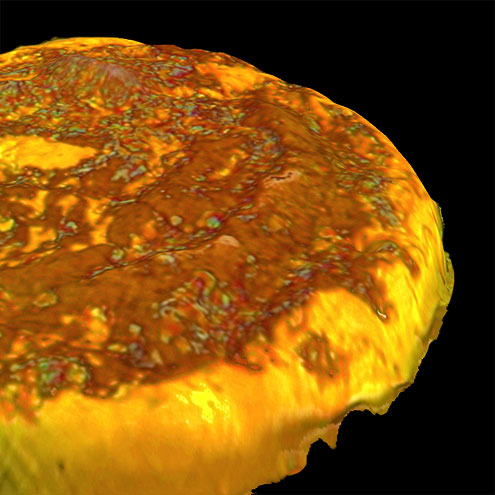

Intermetallic Coverage (IMC) is widely used to study the adhesion of the components after a bonding process. It is the ratio between the total area of the bond and the area covered by the intermetallic layer. Small IMC values may indicate mechanical and electrical malfunction due to weak bonds. This plugin calculates it by automatically detecting the intermetallic layer using color information.

IMCC

PCB | SEMICONDUCTOR

Intermetallic Coverage (IMC) is widely used to study the adhesion of the components after a bonding process. It is the ratio between the total area of the bond and the area covered by the intermetallic layer. Small IMC values may indicate mechanical and electrical malfunction due to weak bonds. This plugin calculates it by automatically detecting the intermetallic layer using color information.
