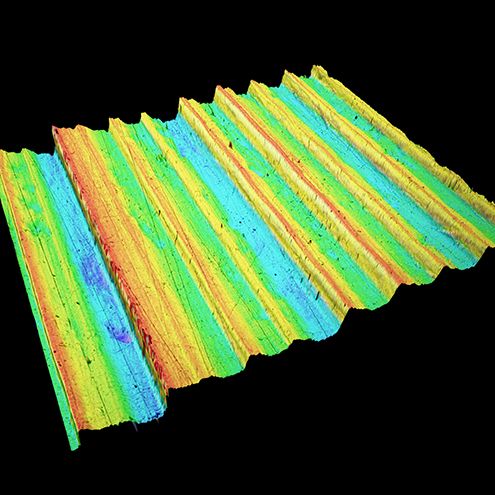

Surface texture profile
This plugin enables the analysis of amplitude parameters from a centered surface profile, in compliance with ISO 21920. Prior to this analysis, the surface profile is filtered according to ISO 16610: Filtration standards, ensuring the separation of roughness parameters (Rx) from waviness components (Wx).
Surface texture profile
This plugin enables the analysis of amplitude parameters from a centered surface profile, in compliance with ISO 21920. Prior to this analysis, the surface profile is filtered according to ISO 16610: Filtration standards, ensuring the separation of roughness parameters (Rx) from waviness components (Wx).
| Parameters | Comments |
| Rp | Maximum peak height |
| Rv | Maximum valley depth |
| Rz | Maximum height |
| Rt | Total height of roughness profile |
| Rc | Mean height of profile elements |
| Ra | Arithmetic mean deviation |
| Rq | Root-mean-square deviation |
| Rsk | Skewness |
| Rku | Kurtosis |
