Characterizing cutting tools is very important to ensure a quality final product. It can also give information about the amount of material that will be removed when cutting. More specifically, the cutting edge of a tool is a key feature to characterize, in terms of useful lifespan and performance of the tool and the required speed and resulting precision of the cut.
PRECISION MANUFACTURING
Laser texturing for surface textures

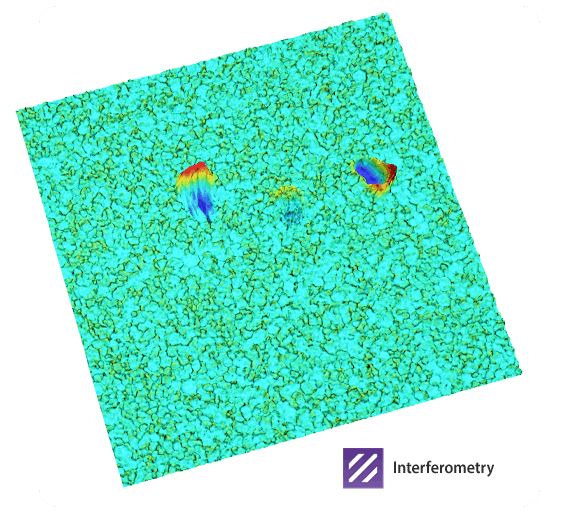

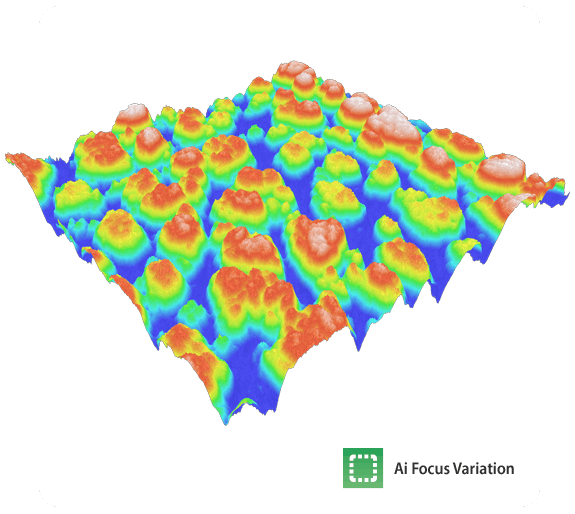

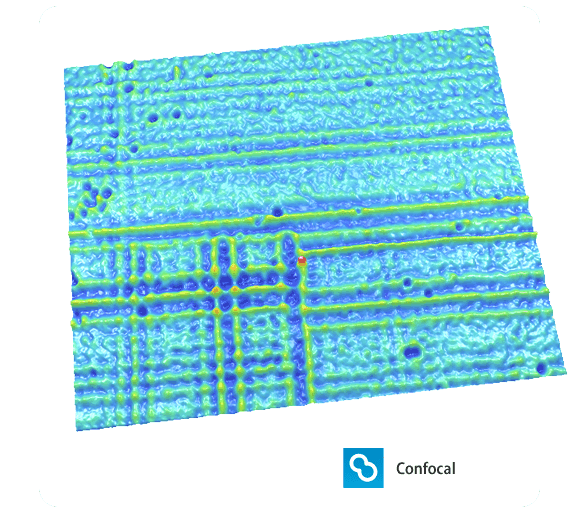

Laser texturing has a different range of surface textures, from discrete ablation features to functional microtextures. Our systems integrate Interferometry, Confocal, and AI Focus Variation into a single product, enabling selection of the most appropriate measurement technique based on surface morphology.

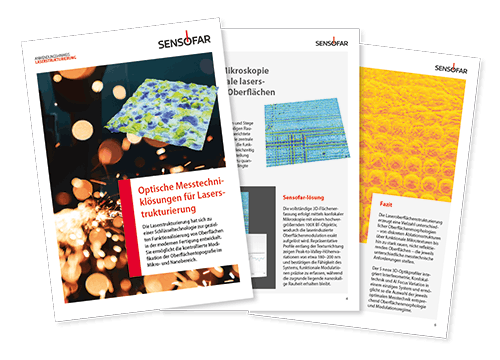

Download the Laser texturing application note
Cutting edge assessment
Radius uniformity and angles on the edge help to understand the behavior that the cutting tool will exhibit. All those parameters are automatically extracted by the Edge plugin in our SensoPRO software. There are many types of cutting tool and since we have 3 technologies in our sensorhead, we can choose the proper technology for each tool.
Cutting edge of an insert
Microdrill for very precise cuts
Cutting edge of a drill
The Cutting edge plugin measures the edge radius and other important parameters plus the top surface profile roughness (height parameters).
Diamond tool
Measuring the roughness of the tool tell us if the cut piece needs a polishing treatment. For diamond tools, we find that the surface finish is extremely polished and only PSI technology has a fine enough resolution to measure it (down to 0.01nm). The S neox Five Axis system is also needed to place the sample perpendicular to the optical axis so PSI can perform.
Full 3D characterization of a drill bit
To measure this sample, Focus Variation is needed due to the high slopes present in the sample. That said, traditional FV technology wouldn’t be able to image a surface this smooth. Our Active Illumination Focus Variation overcomes that limitation and easily images the full 3D shape. CAD deviation and key parameters can be extracted from the measurements using Geomagic Control X.
